TXS

Extreme Pressure Blower,
High Static Pressure

Application

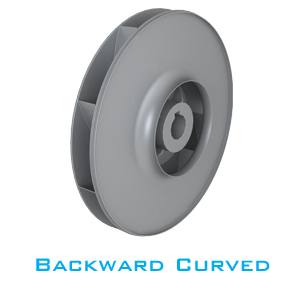

The TXS Extreme Pressure Blower is designed to deliver extreme high static pressure from a very small size blower. The Model TXS features steel housing and a backward curved impeller directly mounted on the motor shaft, operating at a very high RPM and controlled by VFD (Variable Frequency Drive) for flexible operational conditions. The TXS offers high efficiency and reliable operation for industrial processes involving clean air (or filtered air) and medium to low operating temperature. Available up to 15,000 RPM.

Typical applications include combustion air, pressure and vacuum drying, product cooling, primary air supply to ejectors, liquid agitation, glass blowing and cooling, water blow-off, air pollution control systems, heating and ventilation, exhausting, pneumatic conveying and gas boosting.

Sizes (impeller diameters)

• 9.4 to 10 inches (240 mm to 245 mm)

Performance

• Airflow to 1,550 CFM (2,640 m³/hour)
• Static pressure to 88.5 inches w.g. (22,000 Pa)
